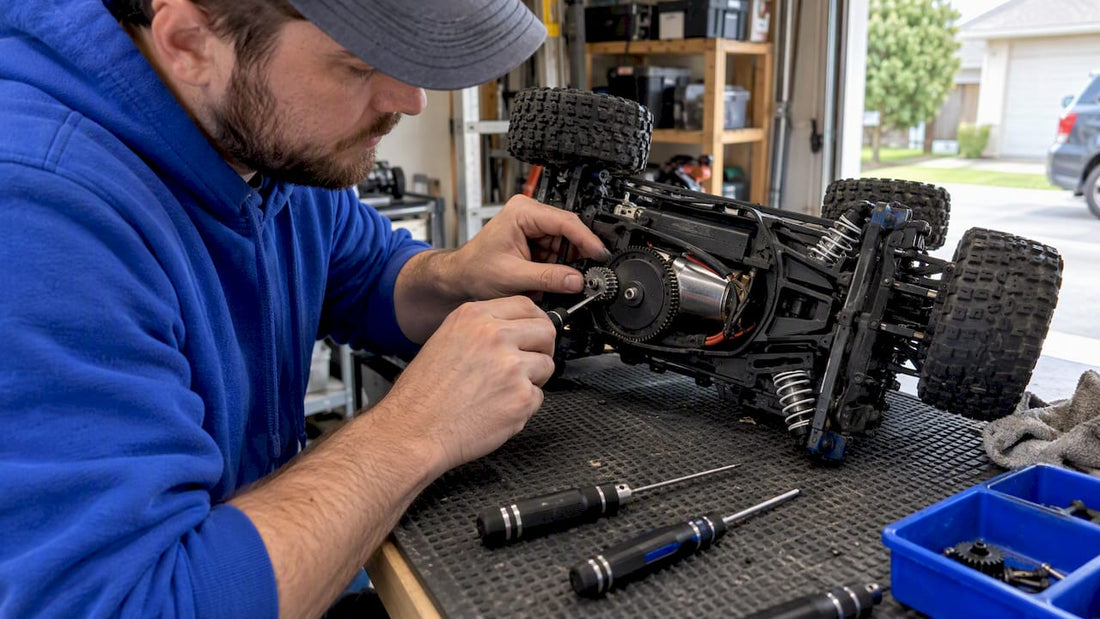

RC car drivetrain with exposed gears

RC Gearing Explained: Use a 180°F Temperature Cutoff When Testing

Gearing is the relationship between your RC car’s pinion gear and spur gear, and it decides whether your car accelerates hard or tops out fast. Swap a smaller pinion or a larger spur onto the transmission and you get more torque and quicker acceleration, but less top speed and more heat in the motor. Going the other way, you trade punch off the line for a higher ceiling on speed, with its own heat risk. Everything else in gearing, from Kv to final drive ratio, flows from that one trade-off.

TL;DR:

  • Changing gear ratios affects torque, speed, and heat, and even a one-tooth difference can alter motor RPM by hundreds, requiring precise testing.
  • Adjusting pinion or spur gears should only be done one step at a time, with temperature monitoring during short runs to prevent motor damage.
  • Higher Kv motors and increased battery voltage require lower gear ratios to keep motor temperatures within safe limits, especially during performance upgrades.
  • Final drive ratios vary by vehicle type, with crawlers needing high ratios for torque and racers favoring lower ratios for top speed, depending on terrain and application.
  • Accurate gear meshing and consistent testing with tools like IR thermometers are essential for reliable performance and motor longevity.
Toylandeu™
Find Your Next RC Adventure
Explore remote-controlled cars, planes, and trucks alongside STEM kits, games, and other toys for every kind of enthusiast.
Browse RC toys

Table of Contents

Pinion, spur, pitch: the parts and terms you need to know

The pinion is the small metal gear mounted directly on the motor shaft. The spur is the larger gear it drives, usually sitting on the transmission’s main shaft. Together they form the primary reduction, the first and most adjustable stage of your car’s drivetrain. A smaller pinion or a larger spur increases the ratio, which means more torque and less top speed. A larger pinion or smaller spur does the opposite.

Gear pitch (sometimes called module in metric terms) describes the size and spacing of the teeth. Pinion and spur must share the same pitch or they will not mesh correctly, and forcing mismatched pitches together strips teeth fast. Common standards include 48 pitch for 1/10 scale cars and 32 pitch or Mod 1 for 1/8 scale and larger vehicles, according to Castle Creations.

Beyond the pinion and spur, most RC cars have additional fixed reductions built into the transmission and axles:

  • The internal transmission ratio, a fixed set of gears inside the gearbox that further reduces motor speed before it reaches the wheels.
  • Axle or portal reductions on crawlers and some trucks, which add another multiplication stage closer to the wheel.
  • These fixed stages do not change when you swap pinion or spur, but they factor directly into your final drive ratio.

Formulas and a worked example: gear ratio, final drive ratio, and RPM math

The core formula is simple: gear ratio equals spur teeth divided by pinion teeth. That number alone tells you the primary reduction, but it is not the whole story. Final drive ratio (FDR) multiplies that primary ratio by the internal transmission ratio and any axle or portal reductions, giving you the true overall reduction from motor to wheel, according to MinutesofThunder.

Motor RPM comes from a separate calculation: Kv multiplied by battery voltage under load. Divide that figure by the gear ratio and you get wheel or transmission RPM, the number that actually predicts how fast the car can spin its tires, as outlined by Rogers Hobby Center.

Here is how the four numbers come together in practice:

  1. Start with a 3,000 Kv motor on a fully charged 2S pack at 7.4 volts: 3,000 × 7.4 equals 22,200 motor RPM.
  2. Apply a gear ratio of 3.0 (a 45-tooth spur divided by a 15-tooth pinion): 22,200 ÷ 3.0 equals 7,400 transmission RPM.
  3. Multiply that by any internal or axle reduction to reach true wheel RPM, which determines ground speed once tire diameter is factored in.

One tooth of pinion or spur change can shift that final number by hundreds of RPM, which is why Rogers Hobby Center and other sources stress testing after every single-tooth adjustment rather than assuming the change is minor.

How changing gearing affects acceleration, speed, torque, and heat

Lowering the gear ratio (bigger pinion, smaller spur) reduces torque multiplication but raises the RPM ceiling, so the car accelerates more gently and tops out faster. Raising the ratio (smaller pinion, bigger spur) does the reverse: the car launches harder but runs out of RPM sooner.

Tire diameter and vehicle weight complicate this. A heavier truck with large tires effectively “feels” taller gearing because more torque is needed to spin a bigger circumference, so the same ratio behaves differently across chassis. A few signs tell you which direction you have drifted:

  • Bogging, hesitating, or stalling under throttle usually means the gearing is too tall for the motor’s available torque.
  • A motor that gets hot within a minute or two, even at moderate throttle, often points to gearing that is too short for the voltage and Kv in use.
  • A car that revs out early and feels flat at top end is likely under-geared for the track or terrain.

Pro Tip: Change one tooth at a time and run a temperature check before deciding the new gearing is correct.

Heat is the real limiting factor in most gearing mistakes. A ratio that looks great on paper can cook a motor in minutes if the load exceeds what the windings can dissipate, which is why every adjustment deserves a measured test run rather than a guess.

Why Kv and pack voltage matter and how to factor them into gearing decisions

Kv measures how many RPM a motor produces per volt with no load. More RPM at the same gearing means more heat, more current draw, and more mechanical stress on the pinion and spur teeth.

The algebra is straightforward: wheel RPM is Kv times voltage, divided by gear ratio, then divided again by any internal or axle reduction. Raise Kv or voltage without adjusting gearing and every downstream number increases, including the one that matters most for motor survival: heat.

  • After adding a battery cell or switching to a higher Kv motor, gear down (bigger pinion or smaller spur reduction, meaning a lower ratio) before your first full-power run.
  • Treat any voltage increase as a reason to retest temperatures from scratch, even if the old gearing felt fine before the swap.
  • When pairing a higher-cell-count pack with an existing electronic speed control, confirm the ESC and motor combination is rated for the new voltage, a mismatch that SpeedyBee’s guide on cell count changes covers in more detail.

A jump from 2S to 3S voltage alone raises unloaded motor RPM by roughly 50% on a fixed-Kv motor, a change large enough to justify regearing before the next run, based on MinutesofThunder’s formula work.

Step-by-step procedure to change gears, set mesh, and run safe tests

Always start from the manufacturer’s stock gearing and change only one variable at a time, whether that is pinion size, spur size, or battery voltage. Mixing several changes at once makes it impossible to know which one caused a problem.

  1. Disconnect the battery and remove the motor from the chassis before touching the pinion.
  2. Fit the new pinion and confirm it shares the same pitch as the spur gear; mismatched pitch damages both gears quickly, per Castle Creations.
  3. Set gear mesh using the paper method: slide a strip of paper between pinion and spur, tighten the motor mount against it, then remove the paper, which leaves the correct small gap.
  4. Reconnect the motor, spin the drivetrain by hand to confirm smooth engagement with no binding or excess play.

Once the car is back together, run a short warm-up, then drive for 3 to 5 minutes at normal throttle. Check motor temperature with an IR thermometer at 60 to 90 second intervals during and after the run, and record the readings along with the gearing used, as recommended by Castle Creations.

If the motor reads above the safe range, gear down immediately, either by fitting a smaller pinion, a larger spur, or dropping to a lower-voltage pack, and rerun the same test before trusting the setup.

Infrared thermometer checking RC motor

Pro Tip: Keep a simple log of pinion, spur, voltage, and peak temperature for every test run, so you can spot patterns across sessions instead of guessing each time.

Different disciplines call for different final drive ratios because they prioritize different things: torque and control for crawling, durability and balance for trail driving, speed with manageable heat for bashing, and track-specific tuning for racing.

  • Crawlers benefit from high numerical FDRs, often in the 40:1 to 80:1 range or higher, because slow, precise throttle control and maximum torque matter more than speed on technical terrain, according to MinutesofThunder.
  • Trail and expedition rigs sit closer to the middle, balancing torque for obstacles with enough speed for covering ground, and should be reassessed whenever tire size or vehicle weight changes.
  • Bashing and short-course setups lean toward lower numerical FDR, often around 10:1 or less, to favor speed, but that direction raises heat risk and needs the same temperature testing as any other change, per MinutesofThunder.
  • Racing setups are track-specific: tighter, technical tracks favor shorter gearing for acceleration out of corners, while long straights reward taller gearing for top speed.

Tire diameter shifts all of these targets. Larger tires make gearing feel taller at the wheel, so Crawlpedia’s crawl ratio guidance points out that FDR numbers alone are not comparable across builds without accounting for tire circumference.

A reproducible test protocol: what to measure, how to measure it, and acceptable limits

A gearing change is only as good as the test that confirms it. Run the car for 3 to 5 minutes at the throttle level you actually use, then check motor temperature with an IR thermometer, repeating the check every 60 to 90 seconds rather than relying on a single reading at the end.

  • Keep brushless motor temperatures below roughly 160 to 180 degrees Fahrenheit (71 to 82 degrees Celsius) during testing, a range Castle Creations treats as the practical ceiling for safe operation.
  • If the motor approaches that upper limit, stop the run, let it cool, and gear down before trying again rather than pushing through.
  • Log amp draw, total run time, and lap times alongside temperature so you can compare the new gearing against the old setup on more than feel alone.

Motors that exceed roughly 180 degrees Fahrenheit (82 degrees Celsius) during a test run should prompt an immediate gearing or voltage reduction, a threshold Castle Creations ties directly to motor longevity. Comparing before-and-after numbers across the same track and conditions is the only way to know whether a gearing change actually helped.

Combining feel with data-driven tuning

Most gearing mistakes come from chasing a bigger number instead of testing what the motor and battery can actually handle. A single tooth change, checked with an IR thermometer, tells you more than a season of guesswork. Many retailers offer RC categories including pinions, spurs, and thermometers suitable for incremental, measured tuning.

— Thane Holland

Where to buy compatible gears and tools at Toylandeu™

Once you know the ratio and FDR you’re aiming for, the next step is sourcing gears that actually fit your pitch and scale. Toylandeu™'s RC Toys collection carries RC vehicles and the kind of drivetrain parts covered here, alongside the broader catalog of over 30,000 items shipped worldwide.

Toylandeu™

Pair a gearing change with the basics: a correctly pitched pinion or spur, an IR thermometer for the test runs described above, and a few minutes on the bench before you hit the track. Browse the RC Toys collection to find compatible parts and get your next test run started with the right hardware in hand.

Sources

FAQ

What gearing makes an RC car faster?

A lower numerical gear ratio, achieved with a bigger pinion or smaller spur, raises top speed by letting the motor reach higher RPM before it runs out of range. That trade-off reduces acceleration and torque, so it works best paired with temperature testing to confirm the motor can handle the extra RPM safely.

What is an 8.1:1 gear ratio good for?

A gear ratio sitting in the middle ground favors acceleration and control over outright top speed, which suits bashing or general all-around driving rather than dedicated racing or crawling. The right fit still depends on motor Kv, battery voltage, and tire size on your specific build.

What is the best gear ratio for an RC crawler?

Crawlers typically run high numerical final drive ratios, often between 40:1 and 80:1 or higher, because slow, controlled torque matters more than speed on technical terrain, according to MinutesofThunder. Portal or axle reductions on the chassis factor into that total, so the pinion and spur alone don’t tell the whole story.

Is a 4.56 gear ratio good?

A moderate ratio is reasonable for general driving or light bashing, offering more torque than a pure speed setup without going as high as a dedicated crawler ratio. Whether it’s “good” depends on your motor’s Kv, your battery voltage, and whether motor temperatures stay within safe range during testing.

How do I know if my RC car is geared too high or too low?

Bogging, hesitating, or stalling under throttle usually signals gearing that’s too tall for the available torque, while a motor that overheats quickly at moderate throttle often means the gearing is too short for the voltage in use. Running the temperature test described above after any change is the most reliable way to confirm which direction you need to adjust.
